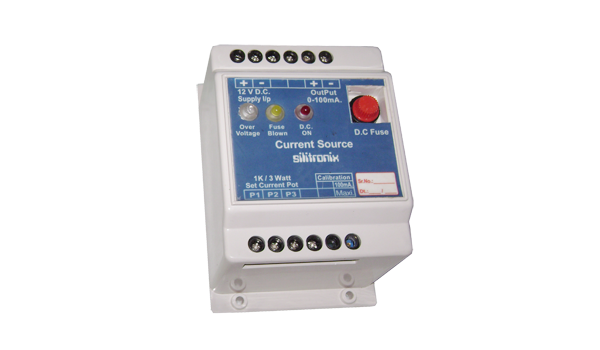

Current Source

This device is useful to feed Power to Hydrostatic Valve. This Hydrostatic Drive is used in PAVER Machine to control PAVER Speed. It is available in Chassis mounted ABS plastic light weight cabinet.

Our product is available with different Input Supply & Different output Current.

  • Input Supply : 12 V D.C. --- Out Put Current : 0 To 100 mA.
  • Input Supply : 24 V D.C. --- Out Put Current : 0 To 100 mA.
  • Input Supply : 24 V D.C. --- Out Put Current : 0.200 A To 0.600 A.
PROTECTIONS : OUR Above Product is protected as under features.

  • Input Supply reverse polarity.
  • Out Put over load protection by means of Glass Fuse.
  • Input Supply tolerance +- 15 %.
  • In input supply 12 V D.C., Model, if it exceed 16 V , and In input supply 24 V D.C., Model, if it Exceed 30 V, Supply to the Instrument will automatically cut OFF with over load Indication.

There are Three LED Indications are provided on top of instrument as under.

1. D.C. ON.
2. Fuse blown.
3. Over Voltage
