Battery Charger

Silitronix Systems is a prominent Manufacturer and Supplier of world -class Battery chargers. The wide demand of our premium quality chargers can be attributed to.



  • Models : We manufacture different types of Fully Automatic Battery Chargers with all kinds of Protections. Our Battery Chargers are based on …

      Constant Current (CC) / Constant Voltage (CV) --- SRC Based Technology.
      Constant Voltage (CV) --- SMPS Based Technology.
      Float Cum Boost Chargers --- Conventional Technology.
      Constant Voltage for Two wheeler VRLA Battery Chargers for Single Battery & Multiple Battery Chargers --- Micro controller Based intelligent technology.
  • Meters : We manufacture the Battery chargers along with different kinds of meters like which helps in precise Monitoring & Controlling the Charger's output Voltage & Current.
      Digital D.C. Volt Meter / Ampere Meters.
      Analog D.C. Volt Meter / Ampere Meters.
  • Chargers Out Put : Our Battery Chargers are provided with Unique.
      Output: 12 V to 120 V D.C.
      Capacity: 1A to 25A & above as per requirement.
  • Protection : Our Battery chargers are protected against Dangers of
      Over Load: Using MCB & Electronic Relay tripping Devices.
      Over Voltage: Using Electronic Relay tripping Devices.
      Reverse Polarity: Using Intelligent Battery Sensing Devices.
      Battery Healthy Connection: We provide a LED Indication for this purpose, who takes care of Interconnection between more than Two batteries. This indication is offered in multi Battery Chargers, our Model: BCH / 501.
Battery Charger Type Battery Charger Model number Output DC Voltage Capacity Output Current Capacity Number Of Battery charge at a time Type of Battery Can charge
Float / Boost BCH/501 48V, 72V, 96V, 120V 6A, 8A, 10A, 15A, 20A 4 to 10 Nos. Of Batteries 4 wheeler Battery
Constant Voltage / Constant Current BCH/502 12V, 24V, 48V, 72V, 96V, 120V 6A, 10A, 15A, 20A 1 to 10 Nos. Of Batteries 2 wheeler Battery, 4 wheeler Battery
Constant Voltage for VLA Battery BCH/503 12V 1A 1,4,6,8 Battery 2 wheeler VRLA Battery
Float / Boost BCH/504 48V, 72V, 96V, 120V 2A 4 to 10 Nos. Of Batteries 2 wheeler Battery
Float / Boost with fix voltage BCH/505 12V, 24V, 48V, 110V 6A, 8A, 10A, 15A, 20A, 25A, 35A, 40A 1 to 9 Nos. 4 wheeler Battery

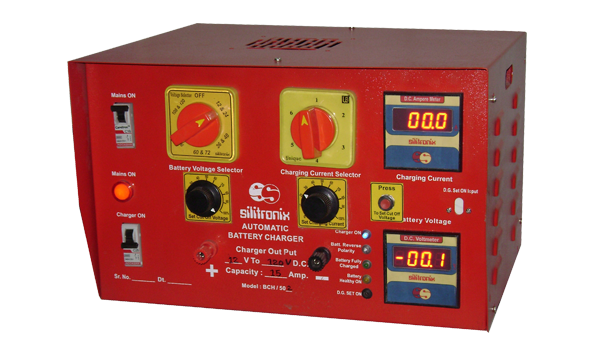

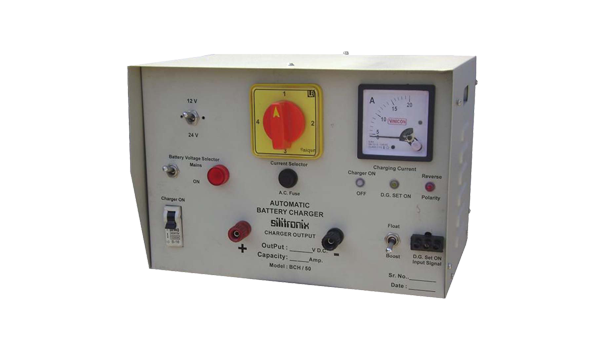

Model : BCH 501

Out Put : 12V - 120V / 10Amp

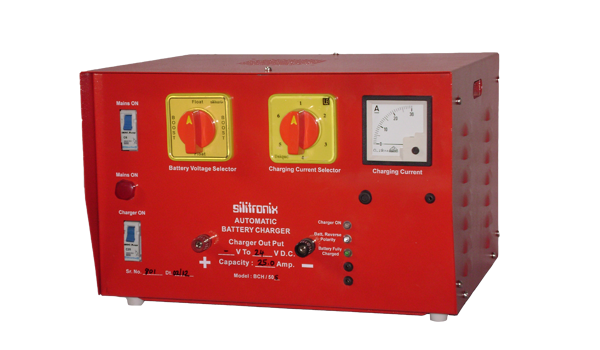

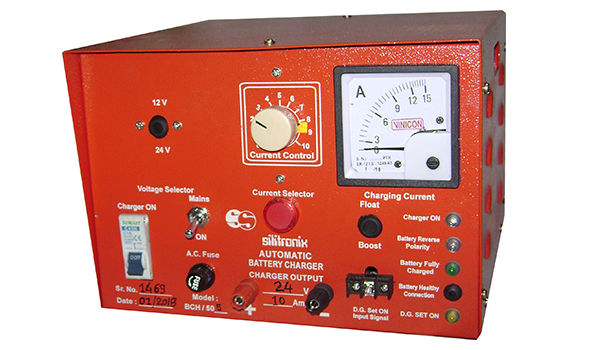

Model : BCH 501

Out Put : 12V - 96V / 10Amp

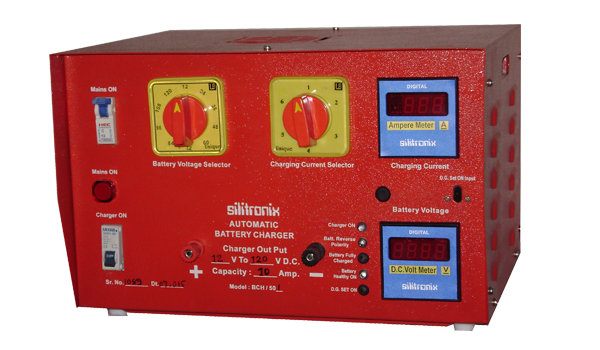

Model : BCH 502

Out Put : 12V - 120V / 15Amp

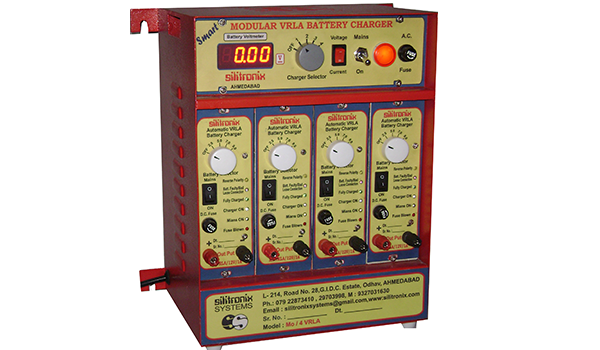

Model : BCH 503

Out Put : 12V / 1A Amp

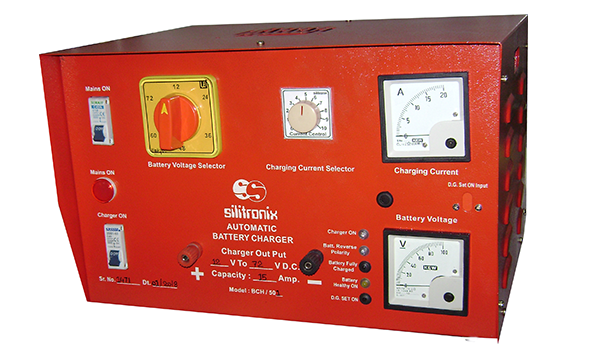

Model : BCH 504

Out Put : 12V - 96V / 10Amp

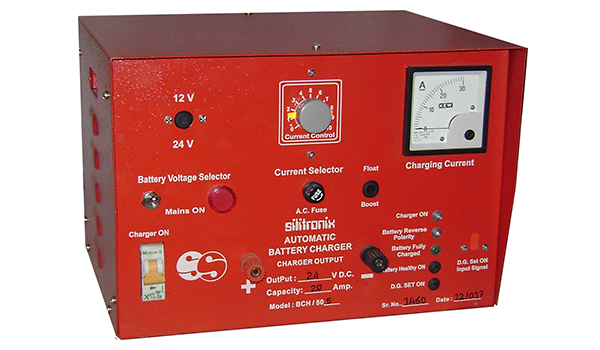

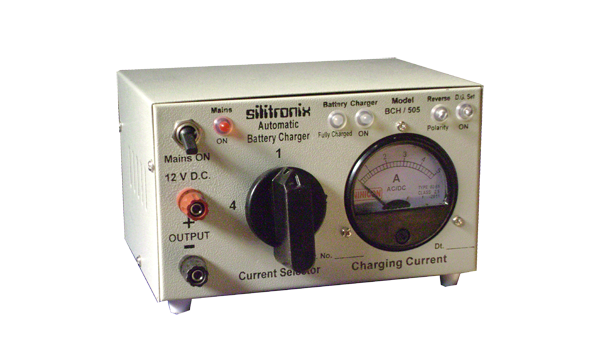

Model : BCH 505

Out Put : 12V / 10Amp

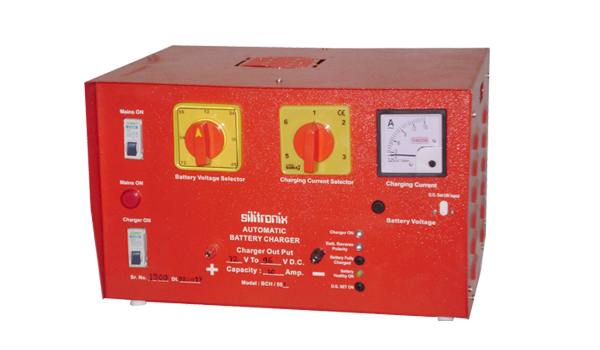

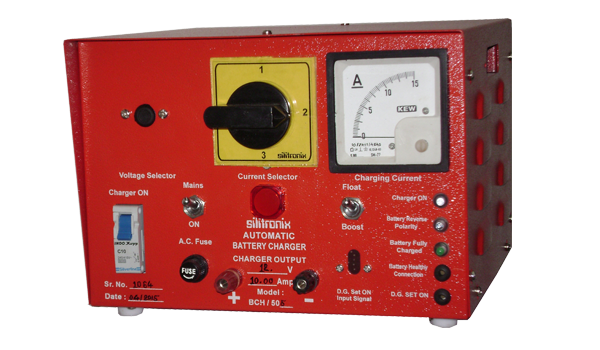

Model : BCH 505

Out Put : 12V / 4Amp

Model : BCH 505

Out Put : 12V - 24V / 15Amp

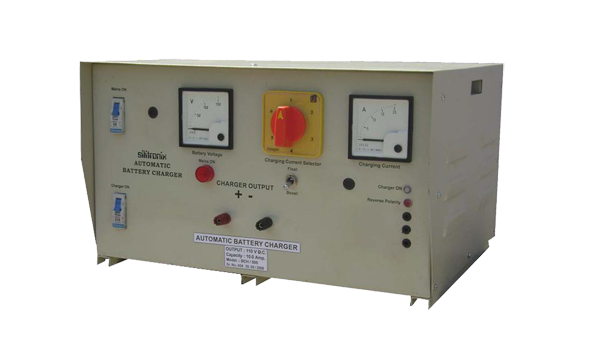

Model : BCH 505

Out Put : 110V / 10Amp

Model : BCH 505

Out Put 24V / 25Amp



4Z - VRLA -2



12-72V-15A -CR-3



24V-10A -CR-2



24V-20A -CR-2

Voltmeter for Battery Voltage measurement



Jumper wire
